Relative advantages of other lasers:

1. single-mode laser output, very high beam quality.

2. gain medium surface area / volume ratio is big, do not need to carry on the special heat treatment, natural air cooling.

3., the fully enclosed flexible light path makes the design of laser processing equipment more flexible.

4. there is no optical lens inside the laser, and no light path adjustment is needed, so the maintenance can be realized in real sense.

5., the use of environmental requirements is low, the average trouble free working time up to 100 thousand hours.

6., small size, particularly suitable for integration into the production line, to achieve online operation.

7. extremely low energy consumption, is the traditional light pump laser 1/25, is the semiconductor laser 1/10

Application industry

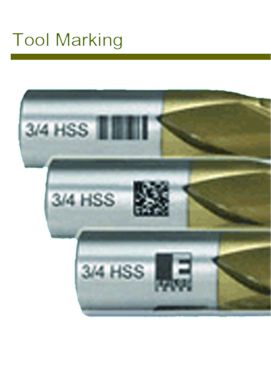

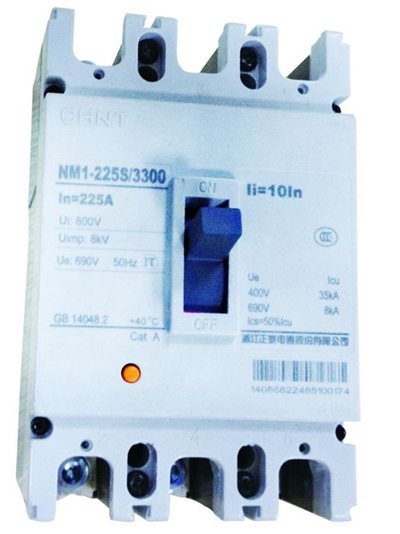

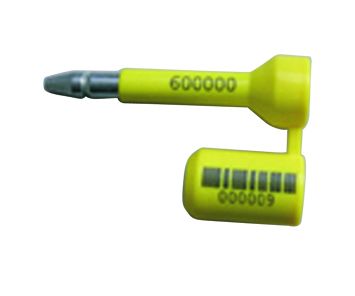

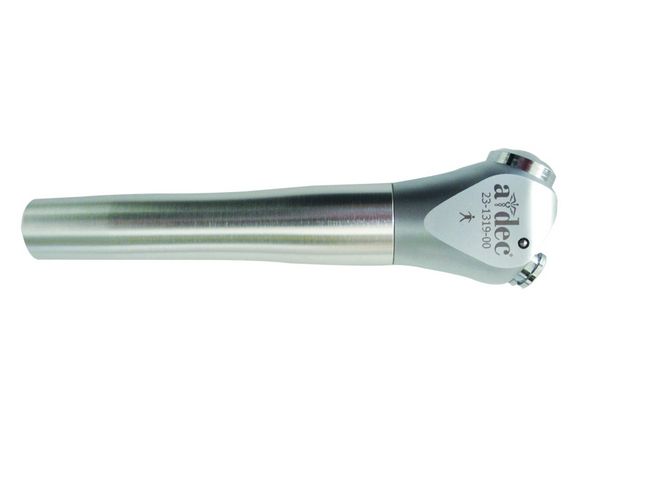

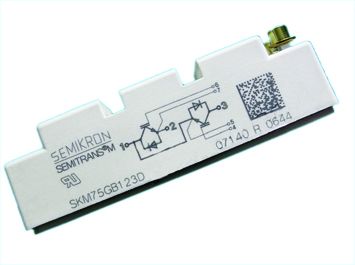

3C industry, automotive industry, medical equipment, electronic components, electrical products, IT industry, hardware tools, precision instruments, gift accessories, high and low voltage appliances.

All models in this series

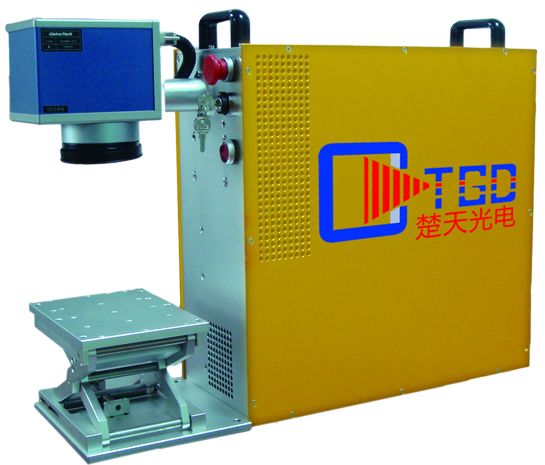

Portable fiber laser marking machine

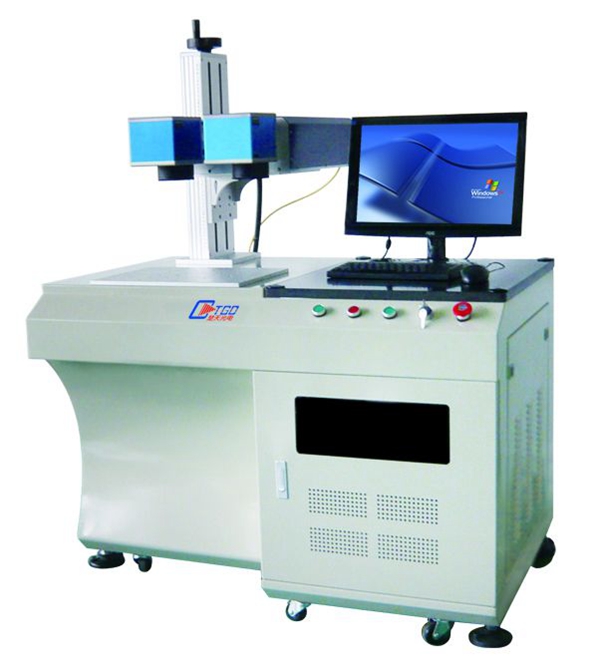

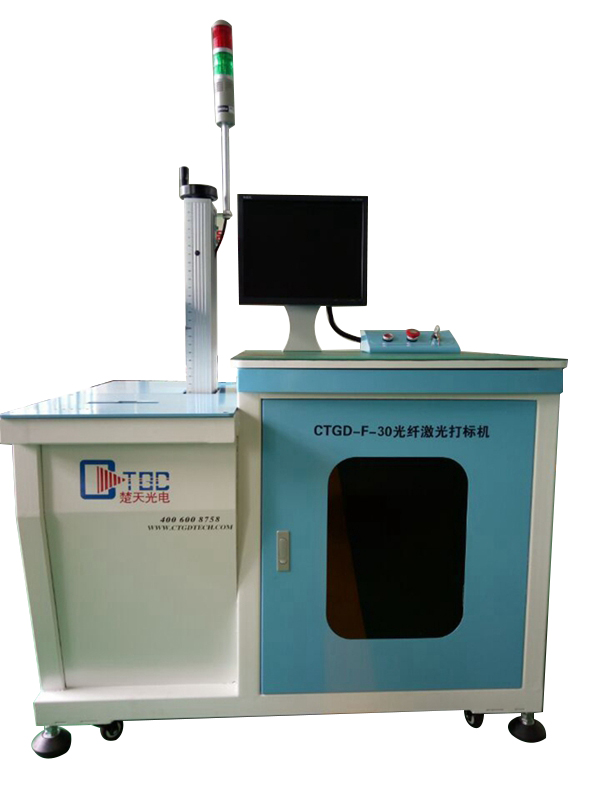

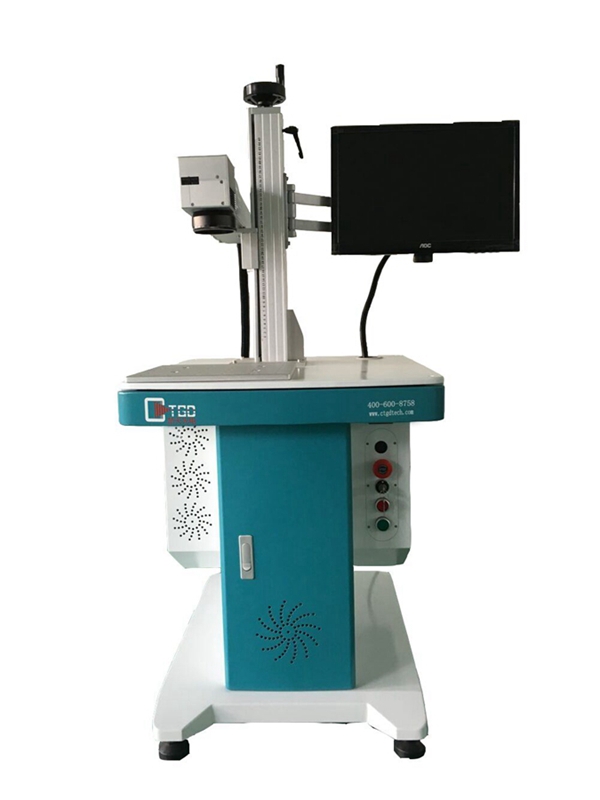

Fiber laser marking machine

Optical fiber laser marking machine with parallel double light path

Technical parameter

Laser work material ytterbium doped fiber minimum character 0.2mm

Laser wavelength 1.064um positioning accuracy 0.01mm

Laser power 10/20W laser lift 200mm

Modulation frequency 20KHz-180 KHz X/Y workbench 85mm * 85mm

The scanning speed is 9000mm/s, the power supply is AC220V + 10% 50Hz

Mark repetition accuracy 0.001mm, output power less than 200W

The marking range is 110 mm x 110mm, and the cooling method is air-cooled

(200mm * 200mm optional) continuous operating time of laser 24H

Marking depth 0.01-0.2mm (depending on material adjustable), safety frequency is too low, over temperature protection

Nominal line width 0.01-0.1mm (depending on material), size 760 x 620 * 1380
